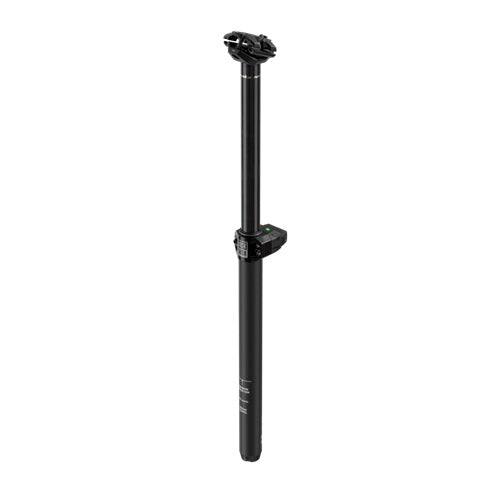

Reverb AXS completes the AXS ecosystem by giving the rider customizable controls, easy install, and a shared battery, charger, and controller. Built for GX, X0, and XX riders, Reverb AXS ensures smooth control and reliability for every rider running a 100mm up to a 250mm dropper post, all with improved battery clearance.
Features:
- NEW air-over-air design that is more robust and durable.
- ActiveRide provides a compliant platform for technical E-MTB climbs when not in fully extended rigid position
- Compatible with all saddle rail types (7x7, 7x9 and 7x10)
Specifications:
|
Post diameter |
34.9mm |
|
Travel |
100mm, 125mm, 150mm, 175mm, 200mm, 225mm, 250mm |
|
Post length |
348.2mm, 352.8mm, 398.2mm, 402.8mm, 448.2mm, 452.8mm, 498.2mm, 502.8mm, 548.2mm, 552.8mm, 598.2mm, 602.8mm, 648.2mm, 652.8mm |
|
Remote |
AXS Controller Sold Separately |
|
Saddle Rail Compatibility |
Round/Oval (7x9 & 7x10) |
|
E-Bike Approved |
E-bike Approved |
|
Minimum Frame Insertion |
110mm, 120mm, 160mm, 80mm |
|
Maximum Frame Insertion |
185.7mm, 188.6mm, 210.7mm, 213.6mm, 235.7mm, 238.6mm, 260.7mm, 263.6mm, 285.7mm, 288.6mm, 310.7mm, 313.6mm, 335.7mm, 338.6mm |
|
Minimum Exposed Height |
162.5mm, 164.2mm, 187.5mm, 189.2mm, 212.5mm, 214.2mm, 237.5mm, 239.2mm, 262.5mm, 264.2mm, 287.5mm, 289.2mm, 312.5mm, 314.2mm |
|
Maximum Exposed Height |
268.2mm, 272.8mm, 318.2mm, 322.8mm, 368.2mm, 372.8mm, 418.2mm, 422.8mm, 438.2mm, 442.8mm, 478.2mm, 482.8mm, 488.2mm, 492.8mm |
|
Weight (g) |
712 |
|
Weight Based On |
200mm 31.6 W/O battery - Battery 25g |
